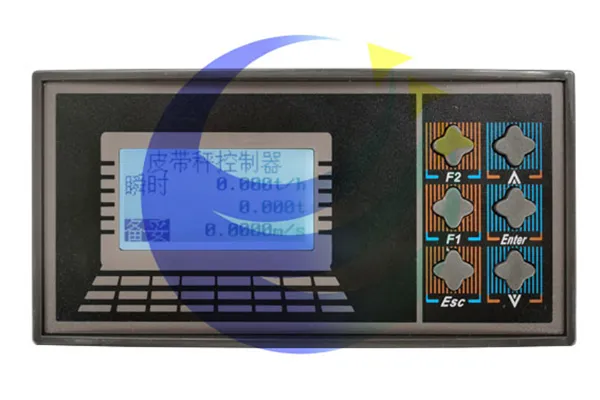

AOBS5000 belt scale control

Belt weigher

It refers to an automatic weighing device that continuously weighs bulk materials on a conveyor belt without the need for mass subdivision or interrupting the movement of the conveyor belt.

Classification by carrier: weighing table carrier, conveyor carrier;

Classified by belt speed: single speed belt scale, variable speed belt scale.

The product adjusts the material flow rate of the feeding equipment by changing the belt speed of the conveyor belt. By installing a load sensor under the measuring roller, the weight of the material on the belt can be input into the instrument, and the unit length material flow rate G (kg/m) can be calculated. There is also a belt speed sensor installed on the belt scale, and the signal is input into the instrument to obtain the speed V (m/s) of the belt. Therefore, the instantaneous flow rate of the belt scale is L=G * V. The instantaneous flow rate PV is compared with the set flow rate value SP, and the belt speed is adjusted through the output of DA to make the adjusted flow rate equal to the set flow rate.

Currently only supports

Plate mounted 160-80 specification

[More terminals]

It has two working modes: speed regulation and constant speed, suitable for controlling various forms and ranges of belt scales, and can also be used for controlling various forms of dynamic scales such as cutter scales, disc scales, and rotor scales.

6DI: System preparation, external startup, alarm reset, external startup switch, external flow input switch, speed pulse

6DO: Belt start, alarm, operation readiness, flow deviation, cumulative pulse

2AI: Load cell, speed or flow setting

2AO: Speed control, flow transmission

A weighing sensor is a device that converts a mass signal into a measurable electrical signal output.

According to the conversion method, it can be divided into 8 categories: photoelectric, hydraulic, electromagnetic, capacitive, magnetic pole transformation, vibration, gyroscope ritual, resistance strain, etc. Resistance strain is widely used.

There are several styles of resistance strain gauges, including S-type, cantilever type, spoke type, plate ring type, membrane box type, bridge type, column tube type, etc.

Weighing sensor module [Note: Explosion proof option available]

=Sensor+adjusting gasket+locking device+anti overturning bolt+bushing+upper mounting matching plate+lower mounting matching plate.
