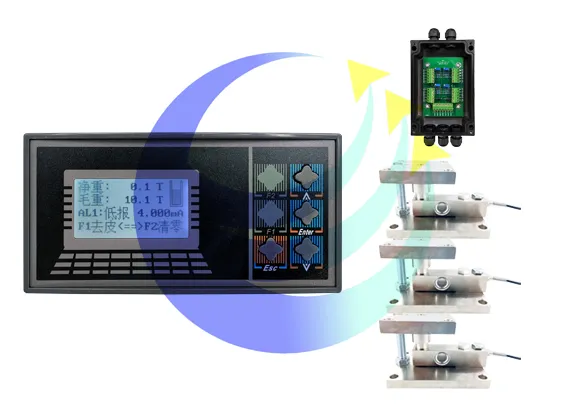

AOBS6000 Conventional Weighing instrument

This table adopts industrial grade component design, LCD display, surface mount technology production, various anti-interference measures, and multiple new research results of single-chip microcontrollers,

It has the characteristics of powerful functionality, small size, high reliability, and strong adaptability. The application of numerous technologies enables instruments to improve product reliability and usability

There are outstanding advantages in many aspects such as activity and ease of operation.

Functional Features

1. Working power supply: 24VDC, 220VAC (optional supply voltage).

2. Weight detection: The resolution is 16 bits, the input sensitivity is 0.2-1.0 μ V/d (according to the factory set gain), and the error is less than 0.01%.

3. Instrument comprehensive error: less than 0.02%.

4. Monitor: LCD display, resolution: 128 * 64, size: 29mm * 57mm, can display 32 Chinese characters and 64 characters.

5. Analog input channel: 16 bit, 2CH, adjustable gain. CH1 can be directly connected to the load sensor, and the instrument provides a 10V/200mA power supply for the sensor; The CH2 input signal is a 0-20mA or 4-20mA current signal.

A weighing sensor is a device that converts a mass signal into a measurable electrical signal output.

According to the conversion method, it can be divided into 8 categories: photoelectric, hydraulic, electromagnetic, capacitive, magnetic pole transformation, vibration, gyroscope ritual, resistance strain, etc. Resistance strain is widely used.

There are several styles of resistance strain gauges, including S-type, cantilever type, spoke type, plate ring type, membrane box type, bridge type, column tube type, etc.

Weighing sensor module [Note: Explosion proof option available]

=Sensor+adjusting gasket+locking device+anti overturning bolt+bushing+upper mounting matching plate+lower mounting matching plate

The difference between skinning and zeroing:

Gross weight=tare weight+net weight

Reset: Set installation complete

Afterwards, the operation performed when the tank (platform, bucket) is empty is similar to the PV reset after our pressure transformation is completed. (Zero setting of equipment)

Peeling: There are practical process requirements, and some production processes require obtaining gross and net weight values. Usually operated under tare weight conditions.

The instrument will display both gross and net weight. (Zero setting of process)
